CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き

CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き
CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き

大画像 :  CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き

商品の詳細:
起源の場所: 広東 中国
ブランド名: Creatall
モデル番号: CA-3166B
お支払配送条件:
最小注文数量: 10PCS
価格: 交渉可能
受渡し時間: 5~8 営業日
供給の能力: 10000の部分/部分每の 日

CA-3166B ブルーツ Bluetooth 5.0 アンプボード 2*50W+100W 2.1チャンネル TPA3116D2 DC12~24V電源付き

説明
モデル: CA-3166B ブランド: creatall
出力: 2*50W+100W 入力電圧: 2 つの直流電源: DC12~24V
出力インペデンス: 4~8オム チャンネル: 2.1
作業型: クラスD 音声入力: AUX/Bluetooth 5 について0
スタンビー流: 60mA サイズ: 116*73*30MM
ハイライト:

TPA3116D2 ブルーツepo_Latnepo_Latn 増幅板

,

AUX Bluetooth アンプボード

,

AUX Bluetooth アンプボード

CA-3166B Bluetooth アンプボード 2*50W+100W 4~8ohm DC12~24V TPA3116D2
製品概要

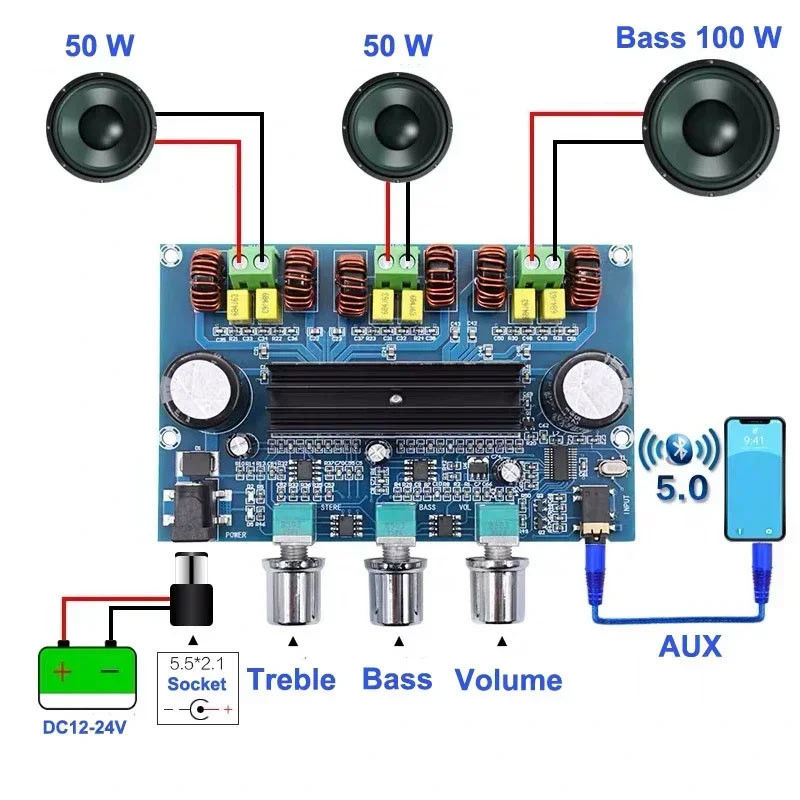

CA-3166B 2*50W+100W Bluetooth 5.0 デュアル TPA3116D2 パワー サブウーファー アンプ ボード - AUX 入力機能付き 2.1 チャンネル TPA3116 オーディオ ステレオ イコライザー。

技術仕様
  • 製品名:2.1 チャンネル TPA3116D2 Bluetooth アンプボード
  • AMPチップ:2*TPA3116D2
  • 最大出力電力:2*50W(4オーム)+100W
  • 電源:DC12~24V
  • チャンネル:2.1
  • 出力インピーダンス:4~8Ω
  • 作業タイプ:クラスD
  • 効率:90%
  • オーディオ入力:AUX / Bluetooth 5.0
  • スタンバイ電流:60mA
  • サイズ:116×73×30mm
  • 重さ:130g

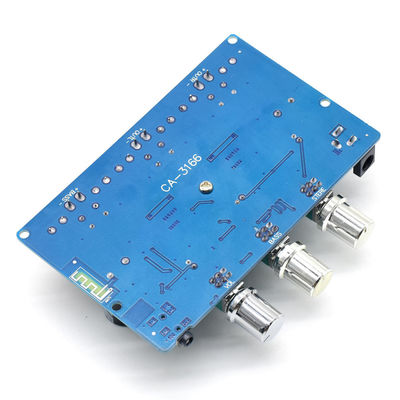

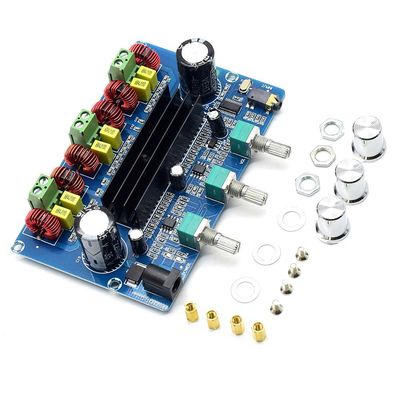

製品画像
